JL-RG10 intelligent rainwater sampling device can grasp the environmental pollution of local air quality in real time. Through rain fall, time-sharing sampling, up to 10 samples can be time-sharing, indirectly reflecting the content of various elements in atmospheric water molecules, and then effectively identify the composition of atmospheric fault indicators, and timely propose air pollution control plans.

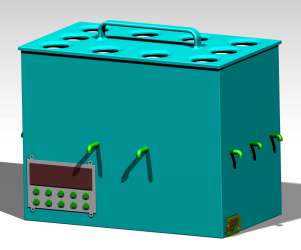

Equipment appearance drawing
The device comes with supporting operating software, with visual graphical operation interface, including automatic interface, water sample output, time setting, test interface and other 6 operating interfaces, the whole process of the experiment can be monitored and operated in real time.

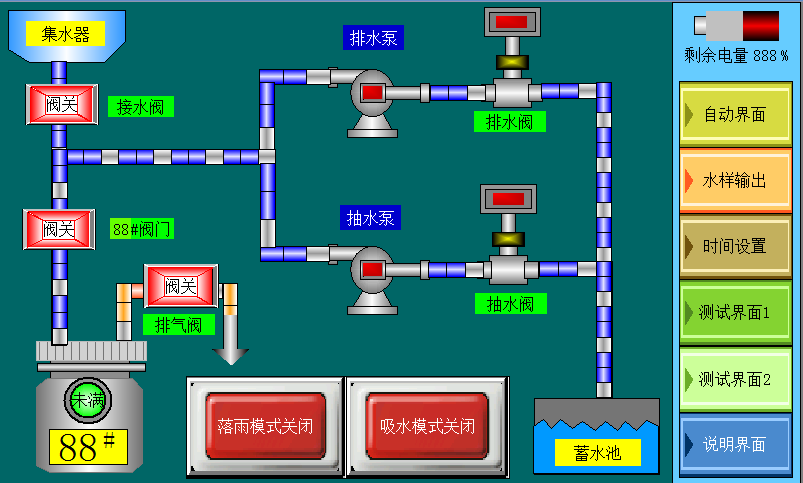

System operation interface Main technical indicators:
Sequence number | Inner volume | Unit of measurement | Technical index | Reserve note |
1 | Bottle capacity | ml | 100 | |
2 | Sample bottle quantity | a | 10 | The timing of rainfall determines the amount of sampling |
3 | Sampling interval time | s | 1-3600 | Adjustable via touch screen |
4 | Rain drainage time | s | 10-180 | Adjustable via touch screen |
5 | Suction and drainage time | s | 10-180 | Adjustable via touch screen |
6 | Effective working time | h | 8 | Full charge |
7 | Suction of negative pressure pump | m | 4 | Maximum suction |
8 | System operating voltage | V | 24、12 | |
9 | Battery capacity | A/h | 10 | |
10 | Case waterproofing | IP65 | ||
11 | volume | mm | 460×380×320 | |
12 | weight | kilogram | 16 |
