JL-TK satellite navigation sounding receiver
Product introduction
Satellite navigation sonde receiver is a multi-channel receiving system developed according to the requirements of the Functional Specification of Satellite Navigation Sonde Receiver issued by China Meteorological Administration. It has the characteristics of good environmental adaptability, reliability and stability, high measurement accuracy, easy maintenance, etc. It can quickly and accurately obtain the temperature, humidity, pressure, wind and other parameters of different sonde deployed in the air by various stations. Equipment for continuous receiving of radiosonde data.
Equipment composition
The satellite navigation sounding receiver consists of a receiver host, an antenna assembly and a structural support.
Performance parameter
Electrical parameters are shown in Table 1:
Operating frequency range | 400.15-406M |
Receiving sensitivity | -120dBm@2400bps |
Airborne transmission rate | 1200bps-9600bps |
Adjacent channel selectivity | ≥65dB@±25kHz@2400bps |
Receive frequency tracking and search range | ±10kHz |
Spectrum sweep characteristic | Sensitivity range: 0-110dBm 1KHz/3KHz/6KHz, the resolution can be set |
Receiving channel | 2 or 8 channels |
Modulation mode | GFSK |
Power supply mode | DC9-15V |
Antenna impedance | 50Ω |
The ground signal receiving and processing equipment of the observation system adopts two modes: omnidirectional antenna or directional antenna.
Antenna cable length: ≤50m(N to N,50-7 lines);
Omnidirectional antenna: receives 360° direction data, no servo system, the antenna is placed in the radome.
Maximum antenna gain ≥3dBi.
The cable length must meet actual installation requirements.
Size (mm):φ370*485;
Weight: ≤3KG;
Size (mm):666*375*50;
Weight: ≤1KG;
Head size (mm):150*100*152
Head weight: ≤2.3Kg
Software function

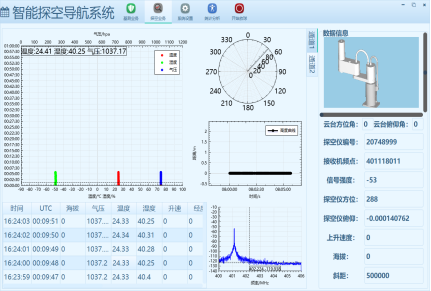

Visual base measurement calibration business, intelligent display of sonde frequency information, sonde data, output base measurement results, quickly realize base measurement calibration business.
Visualization of radiosonde business, a variety of radiosonde data charts, intuitive display of the whole life cycle of the radiosonde process.
System software
Receiver host
Weather station field test
