LY-M1 microrain radar

发布时间:2024-05-16


After years of research and development experiments, our company has successfully developed a domestic small rain measuring radar - LY-M1 micro rain radar, which provides a rain measuring instrument for the research of hydrology and ecological environment.

The principle of microrain radar is based on the relationship between raindrop size and scattering cross section, raindrop size and falling rate. The micro rain radar uses a single phase static antenna structure to reliably measure the raindrop size distribution.






Application field

Raindrop distribution measurement

Real-time precipitation report

Long-term unattended station rainfall measurement

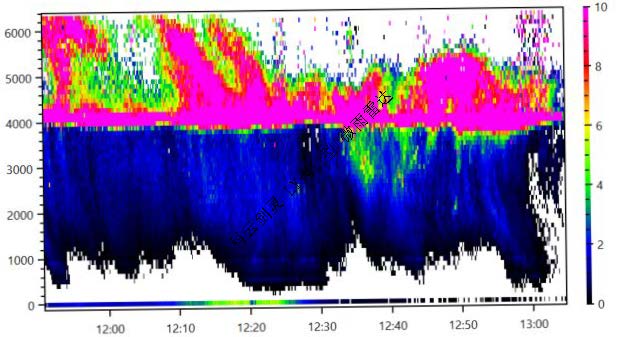

Identification and monitoring of cloud and rain melt layer (bright band)

Real-time calibration of weather radar

Verification of weather modification effect

Research and exploration of cloud physics and hydrologic ecological environment science

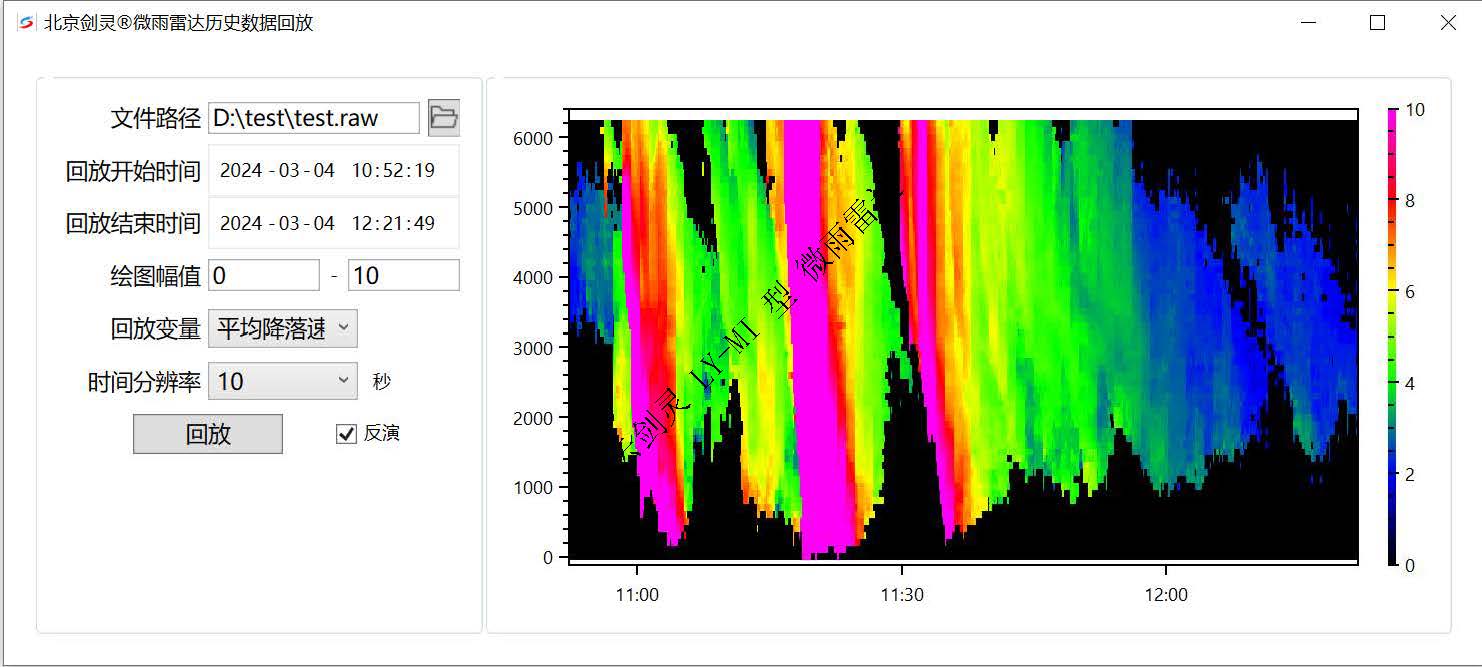

Measurement parameter

The vertical profile distribution of raindrop spectrum, rainfall rate, liquid water content, etc

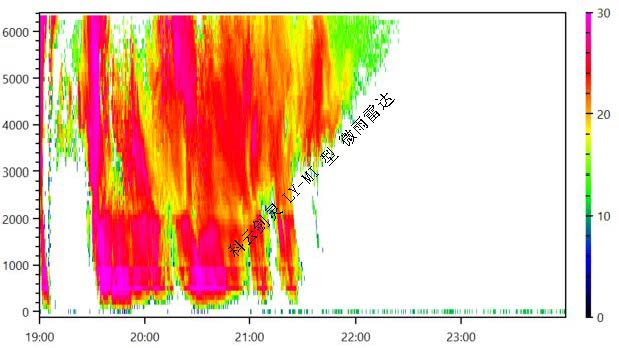

Doppler spectrum, radar reflection factor, Doppler velocity and path integral attenuation

Technical parameter

item

Technical parameter

Antenna appearance

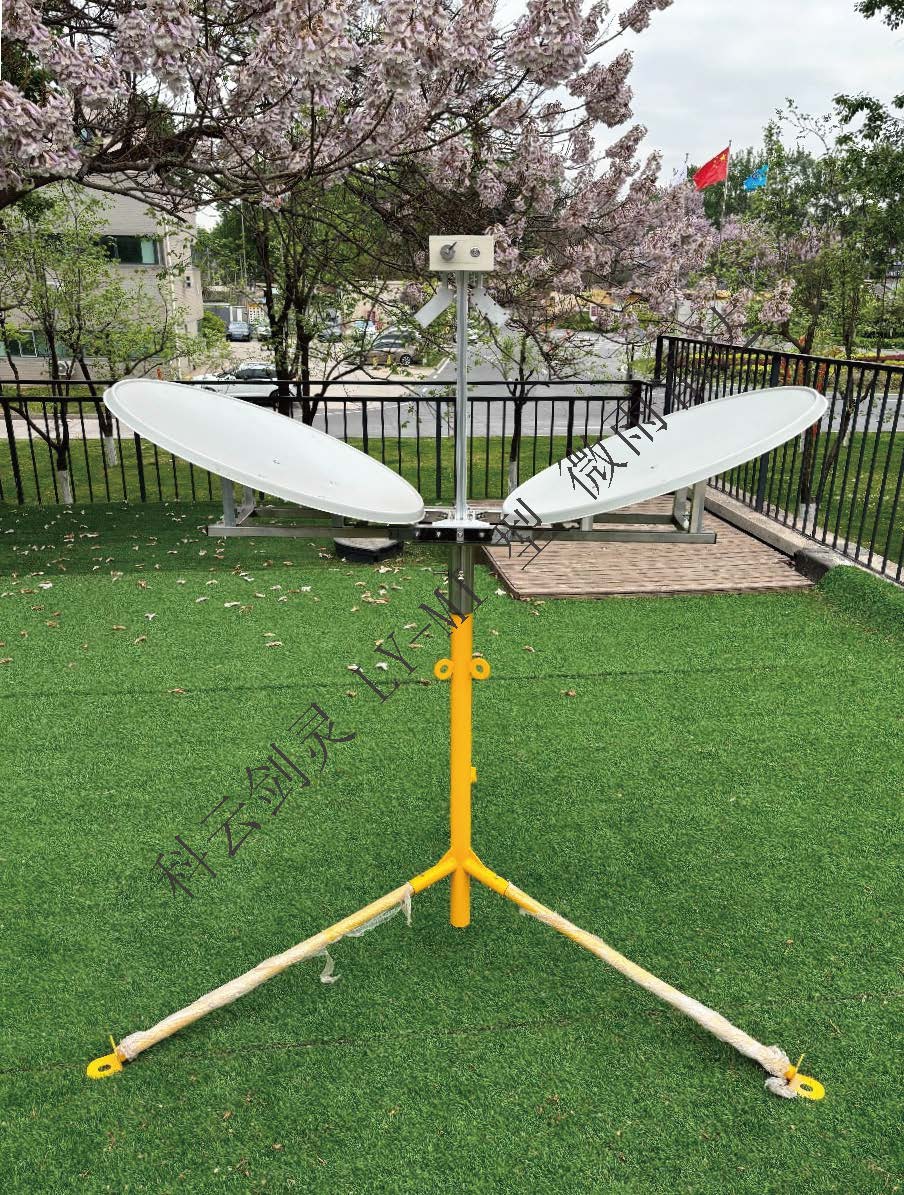

Double offset paraboloid antenna, transmit and receive separately

Antenna diameter

60cm

Antenna gain

40dB

Operating frequency

24.23GHz

Transmitting waveform

Frequency modulated continuous wave

3dB beamwidth

1.5°

Transmitting power

100mW

Vertical height measurement range

10m~6500m

Precipitation particle size measurement range

0.1mm~6mm

Raindrop velocity resolution

0.2m/s

Raindrop velocity range

0~12.5m/s

Range resolution

Adjustable from 10m to 200m

Time interval resolution

The value ranges from 10s to 3600s

Distance interval number

30个

Modulation bandwidth range

0.5~15MHz

Output parameter

The parameters of raindrop spectrum, rainfall rate, vertical profile distribution of liquid water content, Doppler spectrum, radar reflectance factor, Doppler velocity and path integral attenuation can be output in real time

Rain collector

With a rain collector with a diameter of 20cm, resolution of 0.1mm, the number of records ≥10000

Overall power

50W

weight

35Kg

Class of protection

IP67


Manufacturer: Beijing Jianling Technology Co., LTD
