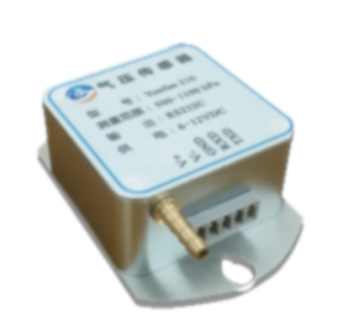

JL-210 atmospheric pressure sensorJL-210 atmospheric pressure sensor is an instrument used to measure atmospheric pressure, using silicon resonant pressure measurement high-precision pressure sensitive element, using the good mechanical properties of monocrystalline silicon, the atmospheric pressure is converted into the natural frequency of the component, and output, with high measurement accuracy, low hysteresis error, good repeatability, stable performance. It is suitable for atmospheric pressure measurement in different environments such as land and sea, and is widely used in meteorological observation stations, ship survey instruments, ocean observation data buoys and other observation systems.
Main technical parameters:
Measuring range | 400~1100hPa |
accuracy | ±0.15hPa |
Resolution | 0.01hPa |
Long-term stability | ±0.1hPa/year |
Measurement technique | Silicon resonance |
Sampling time | 10s |
Operating voltage | 6~15VDC |
Working current | <10mA |
Communication interface | RS232 |
Operating temperature | -40~60℃ |
Working humidity | 0~100%RH |
