Portable meteorological and hydrological data Beidou transmission system

发布时间：2024-05-16

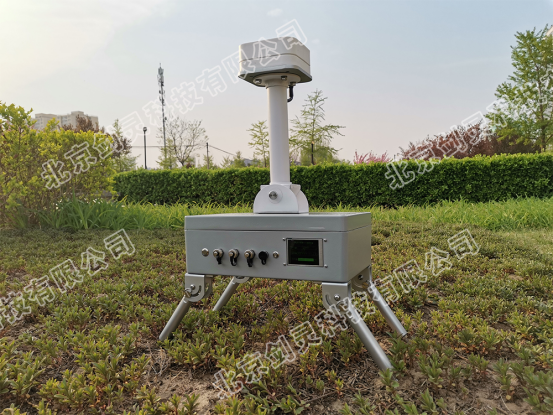

Portable meteorological and hydrological data Beidou transmission system The system includes two parts: transmitter (BD600-FSV2) and receiver (BD600-JSV2). It is an all-in-one machine that supports Beidou function for field data communication. The system integrates the Beidou multi-frequency antenna, baseband, main control board, display screen and lithium battery. Small size, low power consumption, simple connection, easy operation, can be widely used in satellite communication, ship-borne navigation, and emergency rescue and other fields.

Product characteristics

High degree of integration, module and antenna into one;

Wide range of applications, all-weather short message communication;·

IP67 dustproof, waterproof design, can work reliably outdoors;

In addition, the system has a display screen that can display the number of Beidou signals, signal strength, battery power and other information in real time, and the system operation status is clear at a glance.

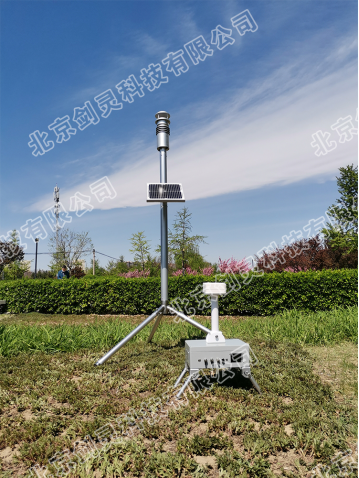

The transmitter (BD600-FSV2) is perfectly adapted to the BXZ600/620 portable automatic meteorological observation instrument to achieve remote real-time and uninterrupted transmission of all-weather meteorological and hydrological data.

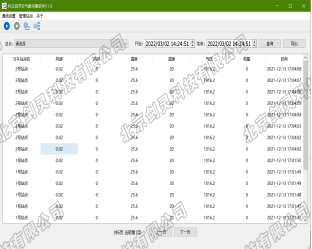

The receiver (BD600-JSV2) is equipped with customized data receiving software and processing and display software, which can receive the meteorological data sent by the transmitter in real time and complete the processing and display.

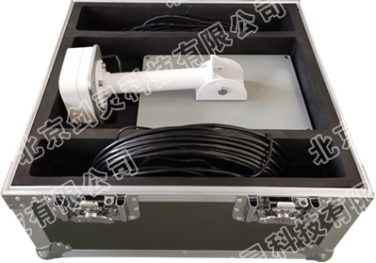

Equipped with shock-absorbing protective rod portable case, easy to carry; Supports wide voltage input, integrated over and over voltage protection and lightning protection, and uses an independent hardware watchdog to ensure long-term stable operation of the device.
