JL-BXZ620 portable automatic meteorological observation instrument is a highly integrated, high-precision automatic meteorological observation equipment for field monitoring. The equipment can be real-time observation of temperature, pressure, humidity, wind direction, wind speed, rainfall and other meteorological elements, support solar power supply, wireless transmission (4G, Beidou, etc., transmission equipment can be selected) and other functions, widely used in scientific research, traffic, meteorology, environmental monitoring and other fields.
.
Product features:
Advanced design concept, convenient disassembly, very suitable for all kinds of wild environment meteorological data collection.
Six-element integrated sensor, aluminum alloy shell, high precision, high integration, weight only 1.8kg.
Rich interface, with RS485, miniUSB, can connect to Beidou wireless transmission equipment (optional).
Using a new generation of rechargeable lithium batteries, the capacity is increased by 75% (compared with the generation I), and the equipment lasts longer.
Six-element integrated sensor with compact structure and high measurement accuracy. It can observe the temperature, pressure, humidity, wind direction, wind speed, rainfall and other meteorological elements in real time.
The customized display software can display the collected meteorological data and change curve in real time; The weather instrument adopts high-end customized portable case, dust-proof, waterproof, shock-proof, durable, can be lifted and pulled, very suitable for field operations and long-term storage; Using the new data collector, advanced design, reasonable layout, with data storage, download functions, storage capacity up to 32G.

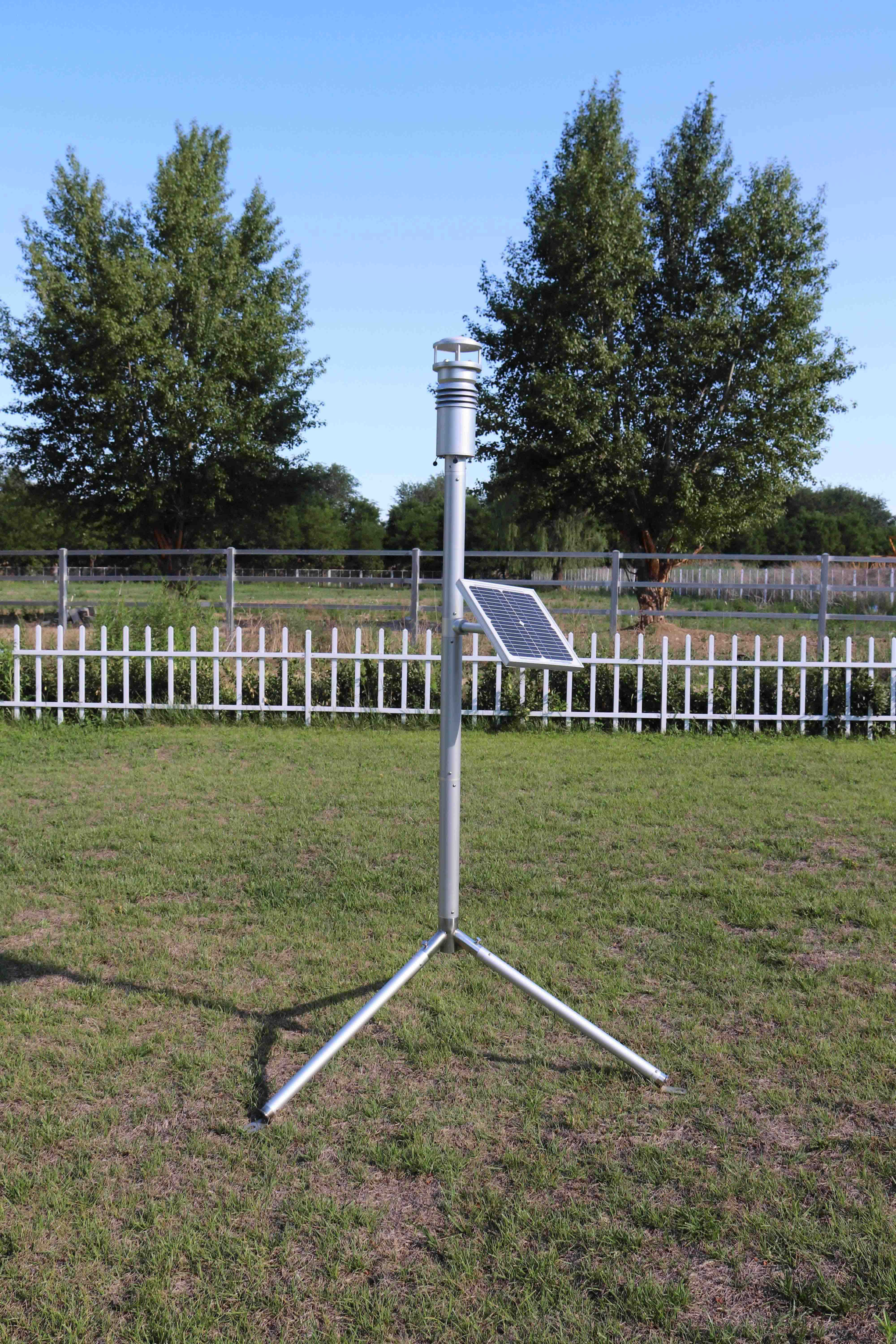

(Above is the appearance of the JL-BXZ620 portable automatic weather observatory)
Technical parameter
Meteorological elements can be measured | Temperature, air pressure, humidity, wind direction, wind speed, rainfall | |
Wind speed | Measuring range | 0~75m/s |
precision | ±0.5m/s (≤0.5m/s) ±(0.5+0.03V)m/s (> 0.5m/s, V is the standard wind speed value) | |
Resolving power | 0.1m/s | |
Starting wind speed | ≤0.5m/s | |
Wind direction | Measuring range | 0~360° |
precision | ±1° | |
Resolving power | 1° | |
temperature | Measuring range | -50~+85℃ |
precision | ±0.2℃ | |
Resolving power | 0.1℃ | |
Relative humidity | Measuring range | 0~100%RH |
precision | ±3%RH(≤80%RH时) ±5%RH(>80%RH时) | |
Resolving power | 1%RH | |
Atmospheric pressure | Measuring range | 200~1200hPa |
precision | ±0.3hPa | |
Resolving power | 0.1hPa | |
rainfall | Measuring range | 0~2048mm |
precision | ±0.1mm(≤5mm) ±0.4mm(>5mm) | |
Resolving power | 0.1mm | |
Storage capacity | 32G | |
Class of protection | IP67 | |
Battery capacity | 21Ah | |
Power supply mode | Battery, mains | |
Data interface | RS485×2,miniUSB | |
weight | ≤20Kg (excluding packaging) | |
Materials | Aluminum alloy/Carbon fiber |
